1. Min-heap by weight
The heap always surfaces the cheapest edge crossing out of the tree.
const heap = new MinHeap((x, y) => x[0] - y[0])Typorithm · medium
Prim's MST
▷ Interactive algorithm labprim-mstgraph-algorithmsmin-heapgreedyfrontier
Saved on this device
Full lesson · 8 learning steps Open any exercise for focused practice
10%
Step 1 of 8 · intro card
Learn Prim's MST
Graph Algorithms

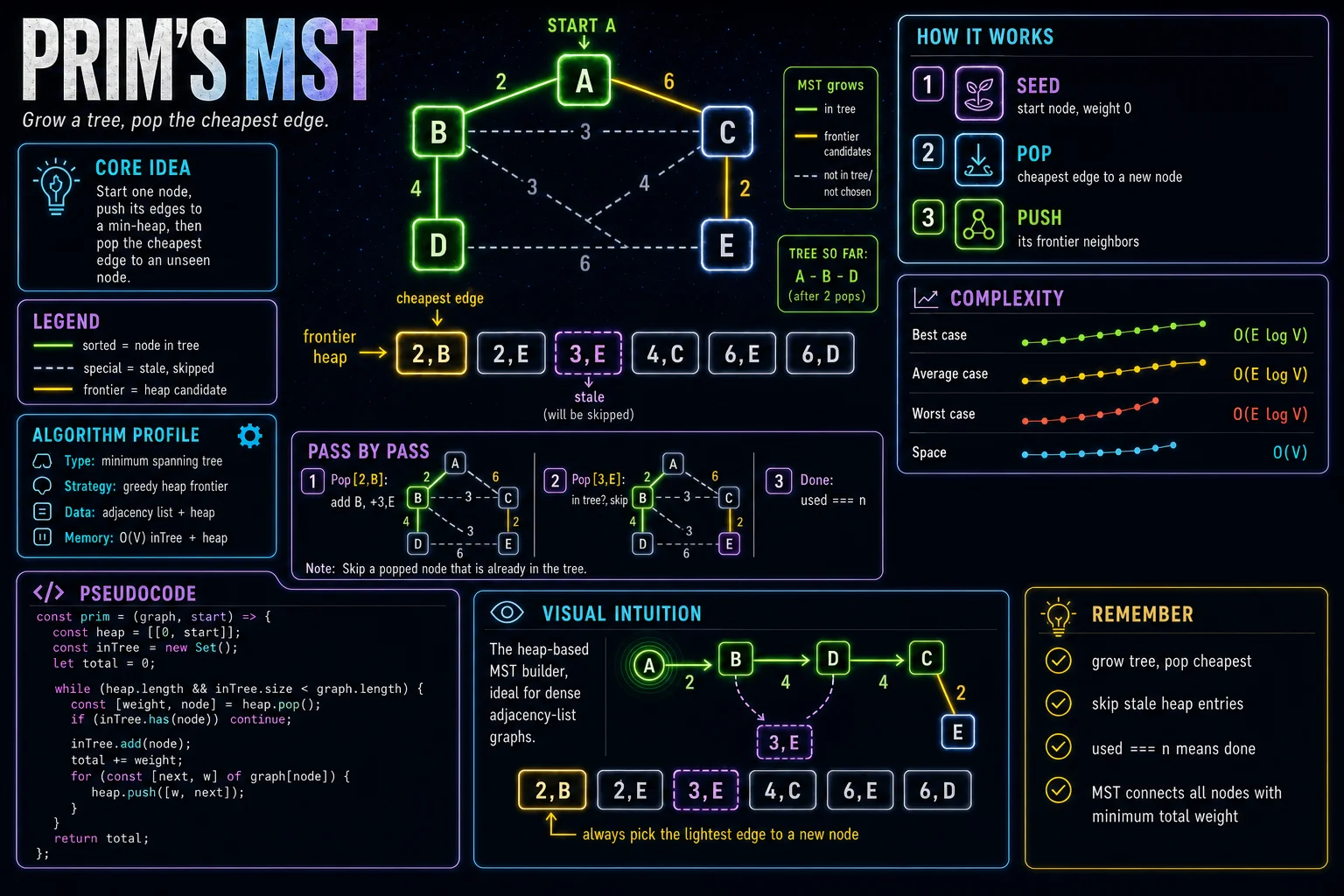

Grow one tree from a start node using a min-heap of (weight, node) edges, always adding the cheapest edge to an unvisited node.
Prim's builds a minimum spanning tree by expanding a single growing tree outward.
A min-heap holds candidate edges; the cheapest edge to a node outside the tree is taken next.
Adding a node pushes its neighbors' edges, refreshing the frontier of crossing edges.
Preparing algorithm lab…
01
Min-heap orders edges by weight.
02
Pop the cheapest edge to a new node.
03
Push neighbors after adding a node.
function primMst(n, graph, start) {
const inTree = new Array(n).fill(false);
const heap = new MinHeap((x, y) => x[0] - y[0]);
heap.push([0, start]);
let total = 0;
let used = 0;
while (heap.size() > 0 && used < n) {
const [weight, node] = heap.pop();
if (inTree[node]) continue;
inTree[node] = true;
total += weight;
used += 1;
for (const [next, w] of graph[node]) {
if (!inTree[next]) heap.push([w, next]);
}
}
return used === n ? total : null;
}Read the implementation
Connect each part of the code to the concept before you type.
2. Seed the start
Begin the tree at the start node with zero cost.
heap.push([0, start])3. Pop cheapest
Repeatedly take the cheapest edge to a node not yet in the tree.
const [weight, node] = heap.pop()4. Skip in-tree
A node may sit in the heap more than once; ignore it once it is already in the tree.
if (inTree[node]) continue5. Push neighbors
Adding a node exposes new crossing edges for the heap to consider.
if (!inTree[next]) heap.push([w, next])A complete learning loop
