Learn TCP Handshake & Teardown

L4 — Transport Layer

TCP is connection-oriented, reliable, and ordered. A connection opens with the 3-way handshake (SYN, SYN-ACK, ACK) to synchronize sequence numbers, and closes with the FIN/ACK exchange. Sockets move through states like LISTEN, ESTABLISHED, and TIME_WAIT, which ss -tan reveals.

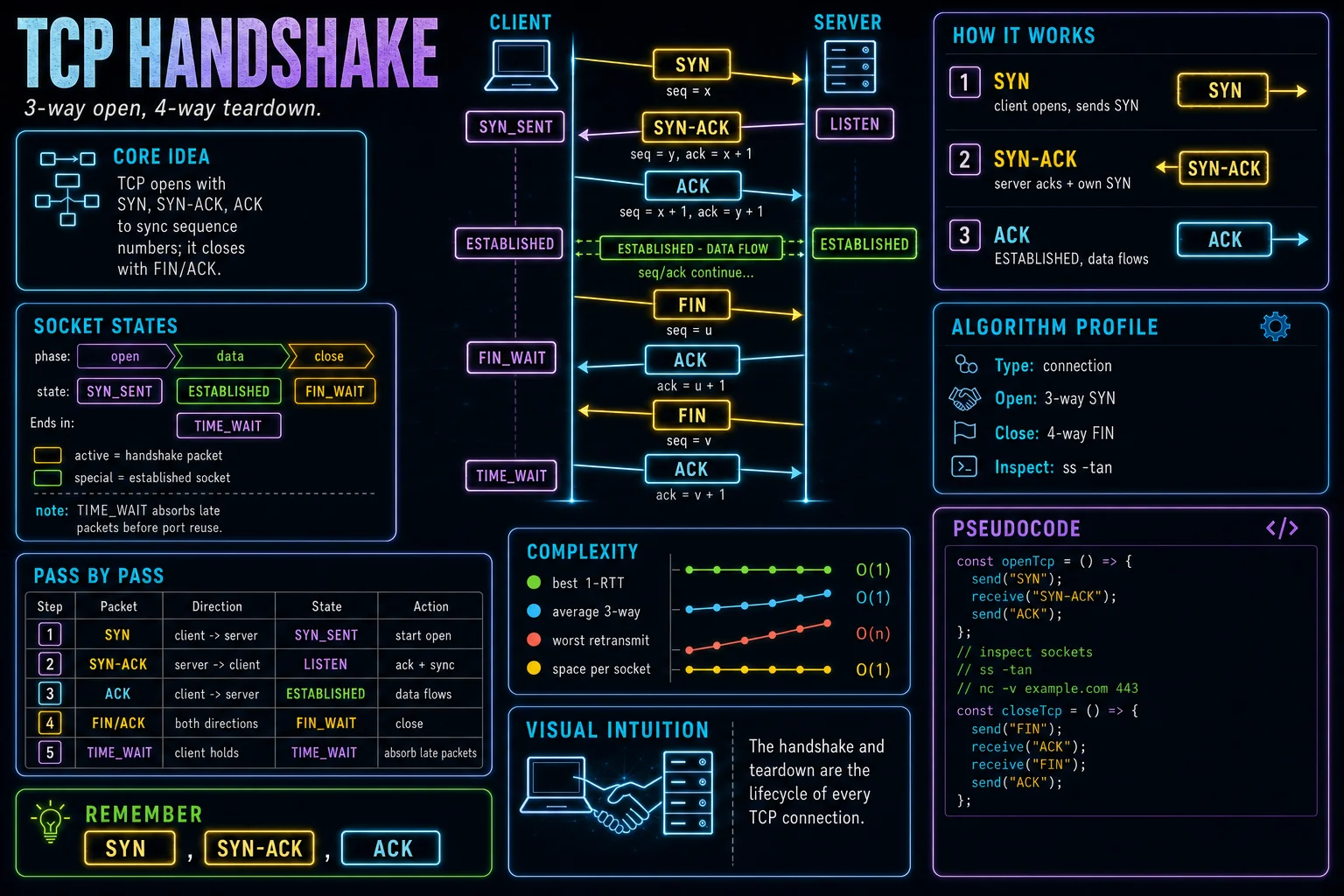

TCP is connection-oriented: before any data flows, both ends complete a 3-way handshake. The client sends SYN, the server replies SYN-ACK, and the client answers ACK. This exchange synchronizes the initial sequence numbers each side will use to make the stream reliable and ordered.

Closing is the mirror image: each side sends a FIN that the other ACKs, so a full teardown is FIN, ACK, FIN, ACK. Because each direction closes independently, you may briefly see a half-closed connection.

A socket transitions through well-defined states — LISTEN while waiting, ESTABLISHED once the handshake completes, and TIME_WAIT after closing to absorb late packets. ss -tan lists every TCP socket and the state it is in.

Open: SYN -> SYN-ACK -> ACK synchronizes sequence numbers.

Close: FIN -> ACK -> FIN -> ACK, each side independently.

ss -tan lists TCP sockets and their state.

# 3-way: SYN -> SYN-ACK -> ACK
ss -tan
nc -v example.com 443
tcpdump -i any tcp port 443
# teardown: FIN -> ACK -> FIN -> ACK

Read the implementation

Connect each part of the code to the concept before you type.

1. The handshake

Opening a TCP connection takes three packets: SYN, SYN-ACK, then ACK.

# 3-way: SYN -> SYN-ACK -> ACK

2. List TCP sockets

ss -tan lists TCP sockets (-t) with numeric addresses (-n) and all states (-a), including their connection state.

ss -tan

3. Open a connection

nc -v opens a TCP connection and prints whether the handshake succeeded — a quick reachability test.

nc -v example.com 443

4. Capture packets

tcpdump captures TCP packets on port 443 so you can watch the SYN/ACK/FIN flags on the wire.

tcpdump -i any tcp port 443

5. Closing down

Each side closes independently with a FIN that the peer ACKs — the four-way teardown.

# teardown: FIN -> ACK -> FIN -> ACK
