Learn Probes & Resources

Config & Scaling

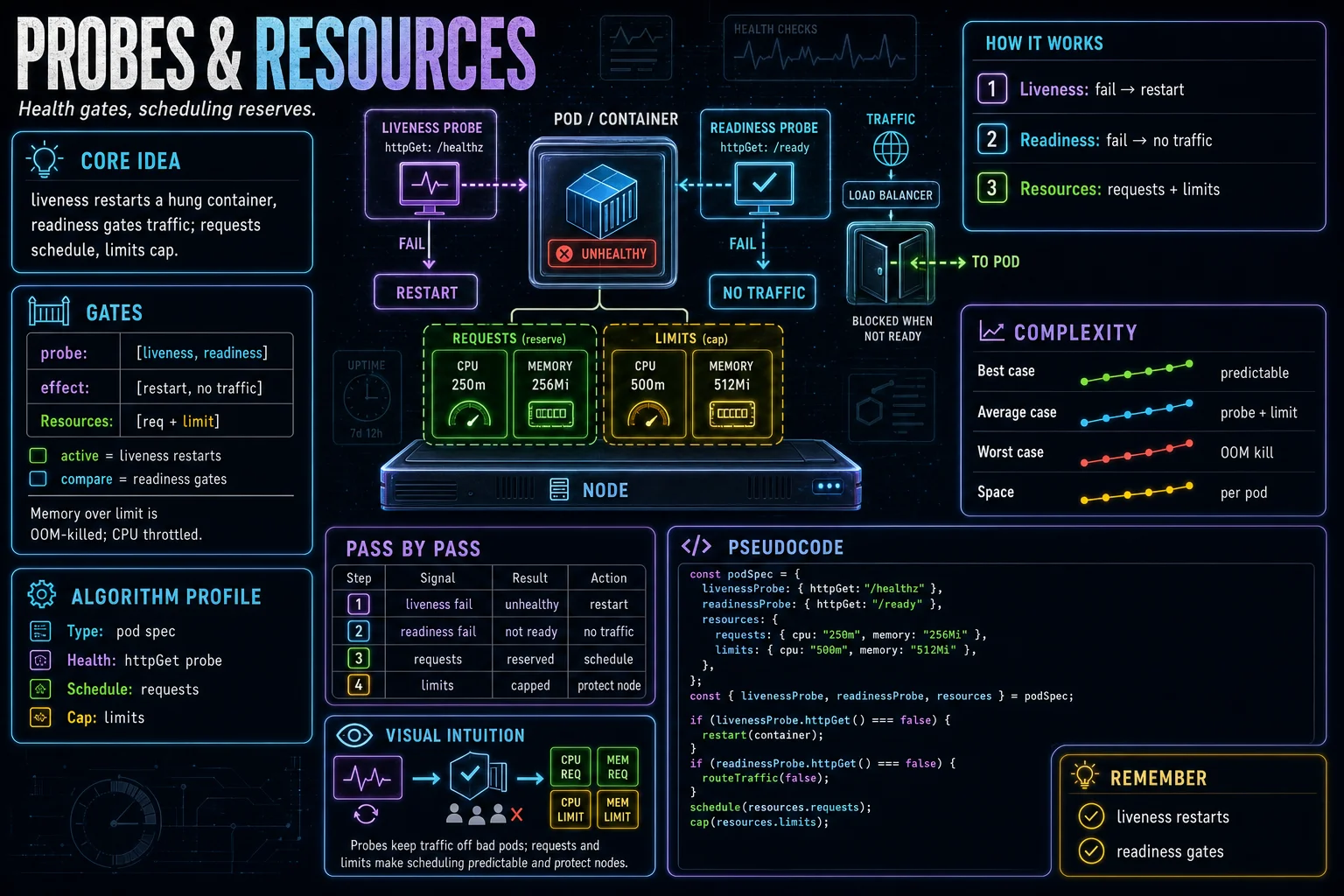

livenessProbe restarts unhealthy containers and readinessProbe gates traffic; resources.requests drive scheduling while resources.limits cap usage.

Probes let Kubernetes act on container health: liveness restarts a hung container, readiness withholds traffic until the app is ready.

httpGet probes hit a path and port; initialDelaySeconds gives the app time to start before the first check.

requests reserve CPU/memory so the scheduler can place the pod, and limits cap usage to protect the node from noisy neighbors.

liveness restarts; readiness gates traffic.

initialDelaySeconds delays the first check.

requests schedule; limits cap usage.

containers:
  - name: web
    image: myweb:2.0
    livenessProbe:
      httpGet:
        path: /healthz
        port: 8080
      initialDelaySeconds: 10
    readinessProbe:
      httpGet:
        path: /ready
        port: 8080
      initialDelaySeconds: 5
    resources:
      requests:
        cpu: "250m"
        memory: "128Mi"
      limits:
        cpu: "500m"
        memory: "256Mi"

Read the implementation

Connect each part of the code to the concept before you type.

1. Restart gate

livenessProbe checks if the container is alive; failing it makes the kubelet restart the container.

livenessProbe:
      httpGet:
        path: /healthz
        port: 8080

2. Traffic gate

readinessProbe decides whether the pod receives traffic; failing it removes the pod from Service endpoints.

readinessProbe:
      httpGet:
        path: /ready
        port: 8080

3. Scheduling reserve

requests are what the scheduler reserves on a node to place the pod.

requests:
        cpu: "250m"
        memory: "128Mi"

4. Hard ceiling

limits cap usage; exceeding memory limits gets the container OOM-killed, CPU is throttled.

limits:
        cpu: "500m"
        memory: "256Mi"

A complete learning loop

Understand

Read the concept map and follow the code breakdown.

Reconstruct

Type the implementation, repair mistakes and work through every recall exercise.

Verify

Use the final check without hints; revisit weak concepts in short practice sessions.
