Learn Three.js Scene

Three.js & R3F

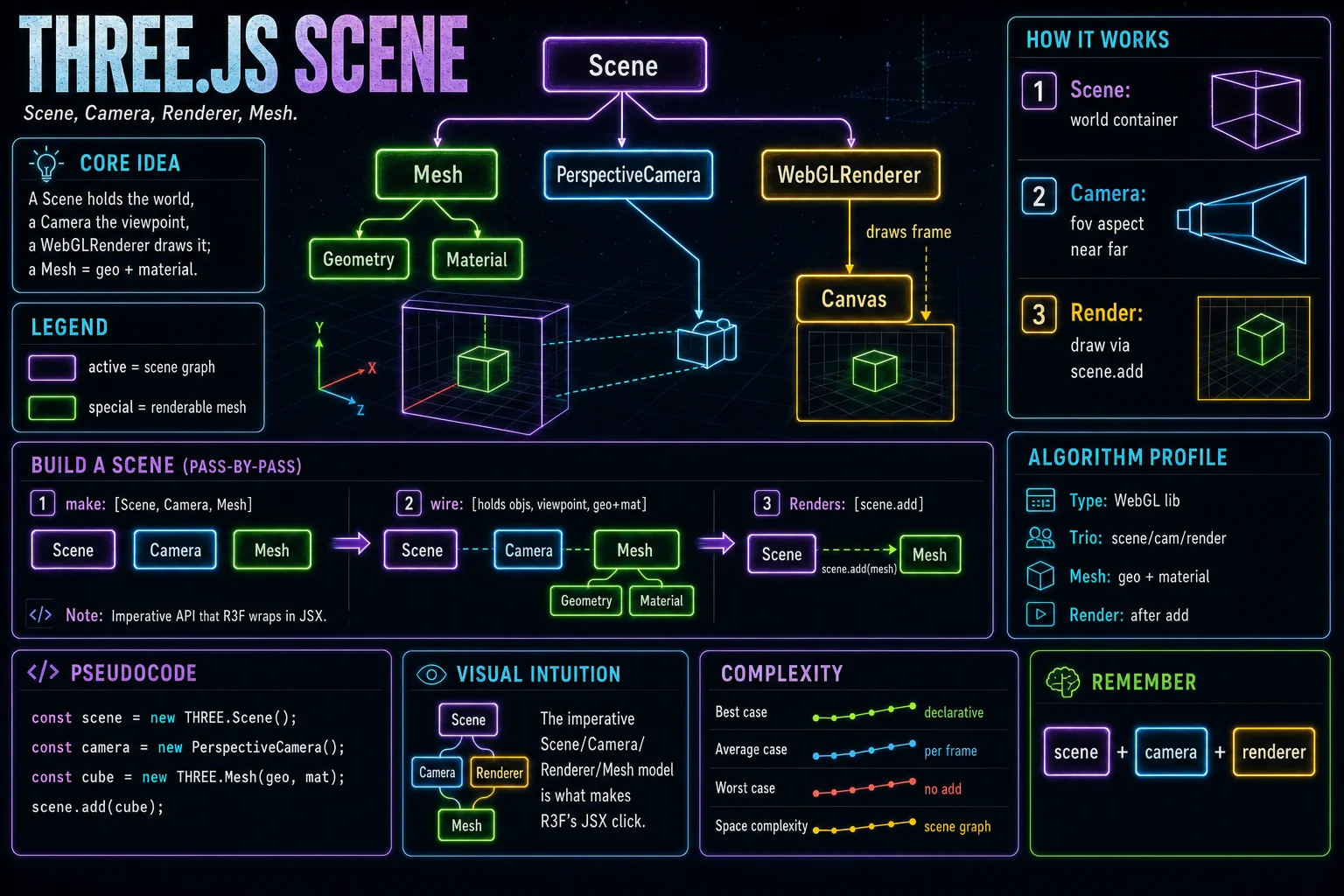

A raw Three.js app needs a Scene (the world), a Camera (the viewpoint), and a WebGLRenderer (draws to a canvas). A Mesh pairs a geometry with a material, and objects must be added to the scene to render. This is the imperative API.

Three.js is a WebGL library. The three core pieces are a Scene that holds everything, a Camera that defines the viewpoint, and a WebGLRenderer that draws the scene from the camera onto a canvas.

A Mesh is geometry plus material: BoxGeometry gives it a cube shape and MeshStandardMaterial gives it a surface that reacts to light. The PerspectiveCamera args are fov, aspect, near, and far.

Nothing appears until you call scene.add(cube) — only objects in the scene graph are rendered. This raw, imperative API is what react-three-fiber wraps in declarative JSX.

Scene + Camera + WebGLRenderer are the core trio.

A Mesh = geometry + material.

Objects render only after scene.add().

import * as THREE from "three";

const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(75, 2, 0.1, 1000);
const renderer = new THREE.WebGLRenderer();
const cube = new THREE.Mesh(
  new THREE.BoxGeometry(),
  new THREE.MeshStandardMaterial({ color: "orange" }),
);
scene.add(cube);

Read the implementation

Connect each part of the code to the concept before you type.

1. The scene

A Scene is the world container — every object you want rendered must be added to it.

const scene = new THREE.Scene();

2. The camera

PerspectiveCamera's args are fov, aspect, near, and far — the viewpoint and visible depth range.

const camera = new THREE.PerspectiveCamera(75, 2, 0.1, 1000);

3. The renderer

WebGLRenderer draws the scene from the camera's view onto a canvas using WebGL.

const renderer = new THREE.WebGLRenderer();

4. A mesh

A Mesh combines a geometry (shape) and a material (surface) into a renderable object.

const cube = new THREE.Mesh(

5. Add to scene

Objects only render once added to the scene graph with scene.add().

scene.add(cube);
