Learn Layered (N-Tier)

Layered & Clean

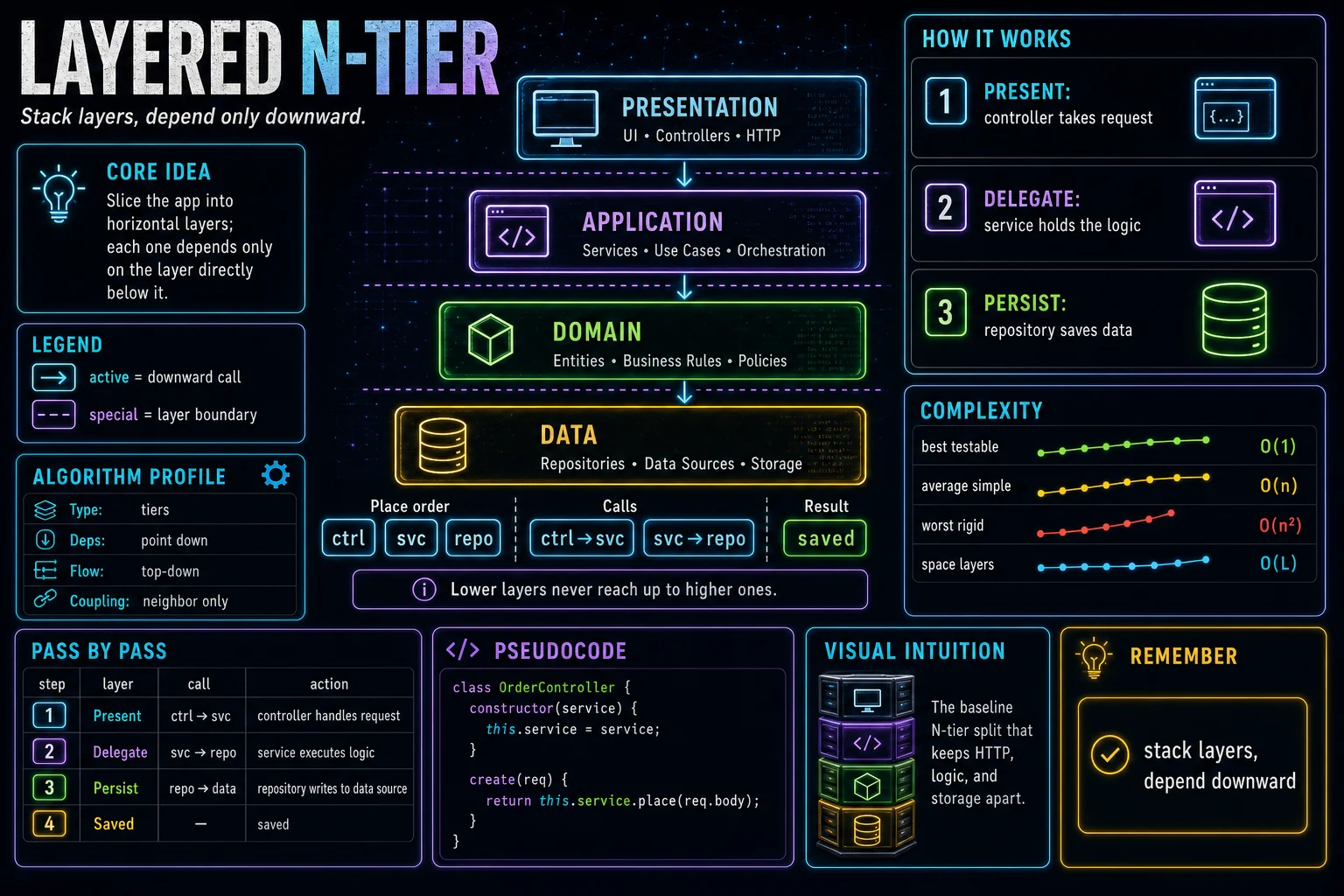

Layered architecture stacks presentation over application/service over domain over data. Each layer depends only on the layer directly below it, so requests flow top-down and concerns stay separated.

An N-tier app is sliced into horizontal layers: presentation (controllers), application/service (use cases), domain (business rules), and data (persistence).

Dependencies point strictly downward — a controller knows the service, a service knows the repository, but no lower layer ever reaches up to a higher one.

Because each layer talks only to the one beneath it, you can change the database or swap the UI without rewriting the layers in between.

Layers stack: presentation -> service -> domain -> data.

Each layer depends only on the one directly below.

Dependencies and request flow both point downward.

class OrderController {
  constructor(private service: OrderService) {}
  create(req) {
    return this.service.place(req.body);
  }
}

class OrderService {
  constructor(private repo: OrderRepository) {}
  place(order) {
    return this.repo.save(order);
  }
}

Read the implementation

Connect each part of the code to the concept before you type.

1. Presentation layer

The controller is the presentation layer; it accepts the request and delegates downward.

class OrderController {

2. Depends on the layer below

The controller holds a service, never the other way round — dependencies point downward.

constructor(private service: OrderService) {}

3. Service layer

The service layer holds business logic, isolated from HTTP details above it.

class OrderService {

4. Calls the data layer

The service delegates persistence to the repository — the data layer one tier below.

return this.repo.save(order);
