Learn ClusterIP Service

Networking

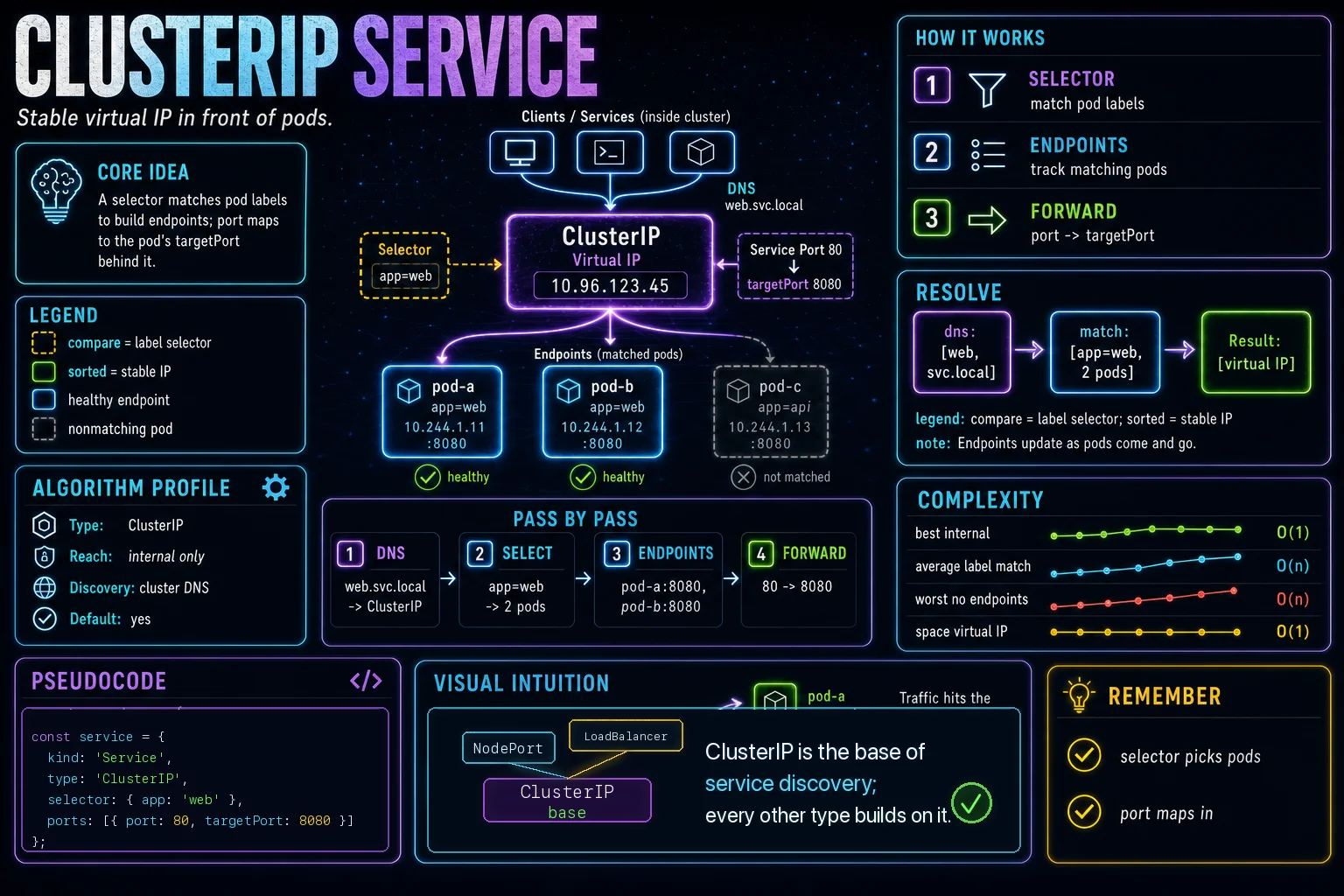

A ClusterIP Service gives pods a stable virtual IP and DNS name; its label selector tracks which pods receive traffic, and port/targetPort map the front to the back.

Pods are ephemeral and get new IPs on each restart, so clients cannot rely on a pod IP directly.

A ClusterIP Service solves this with a stable virtual IP and DNS name; its selector continuously matches pod labels to build the endpoint list.

port is what the Service listens on; targetPort is the pod's container port that traffic is forwarded to.

selector matches pod labels to pick endpoints.

port is the Service port; targetPort is the pod port.

ClusterIP is internal-only and the default type.

apiVersion: v1
kind: Service
metadata:
  name: web
spec:
  selector:
    app: web
  ports:
    - port: 80
      targetPort: 8080
  type: ClusterIP

Read the implementation

Connect each part of the code to the concept before you type.

1. Service object

A Service gives a stable name and virtual IP in front of a changing set of pods.

kind: Service

2. Label selector

The selector matches pod labels; matching pods become the Service's endpoints.

selector:
    app: web

3. Service port

port is the port the Service exposes on its ClusterIP.

port: 80

4. Container port

targetPort is the port on the pod the traffic is forwarded to.

targetPort: 8080

5. Default type

ClusterIP is the default — reachable only from inside the cluster.

type: ClusterIP

A complete learning loop

Understand

Read the concept map and follow the code breakdown.

Reconstruct

Type the implementation, repair mistakes and work through every recall exercise.

Verify

Use the final check without hints; revisit weak concepts in short practice sessions.
