Learn Service Types

Networking

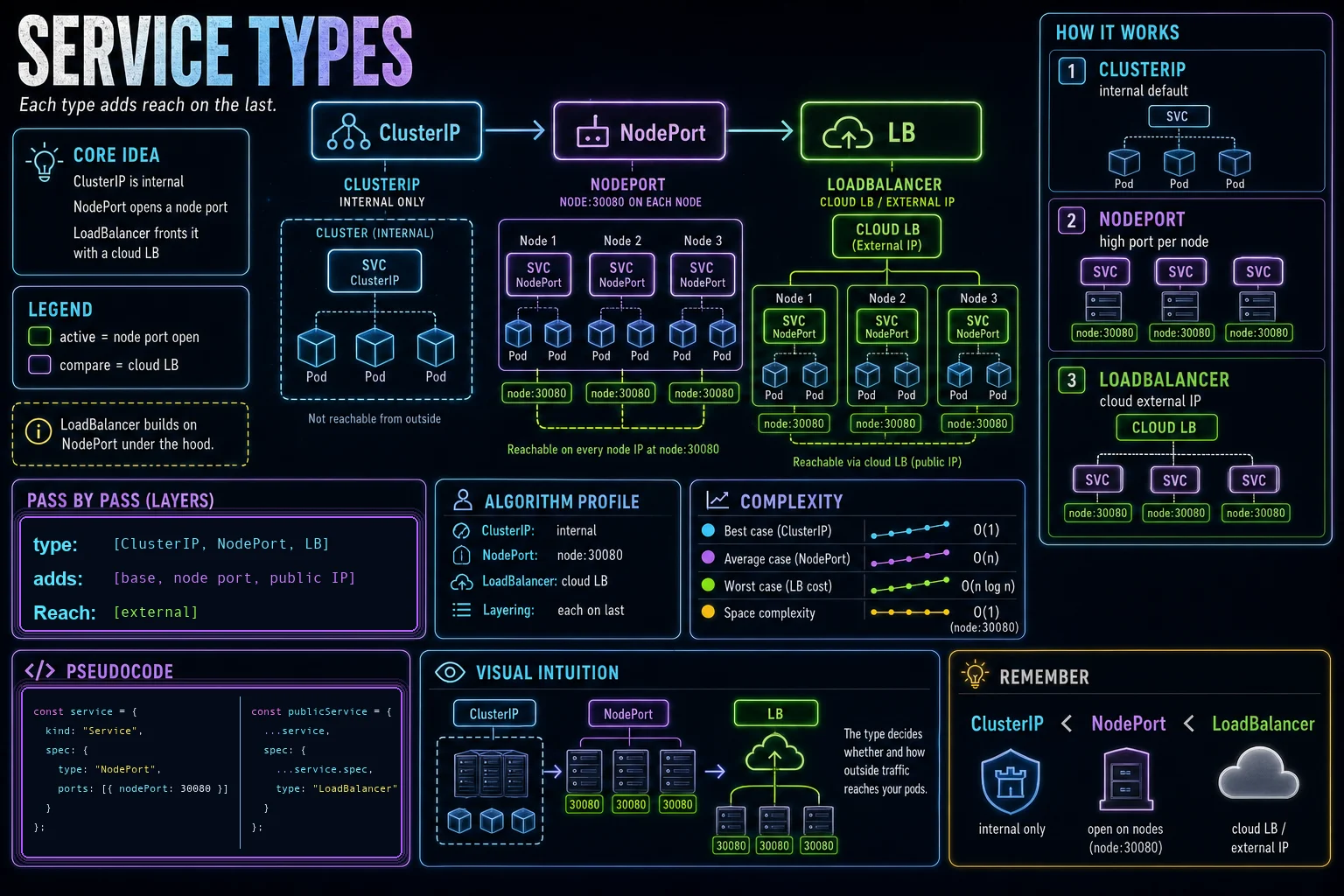

ClusterIP is internal-only, NodePort opens a high port on every node, and LoadBalancer provisions a cloud LB in front — each type adds reach on top of the one before.

ClusterIP exposes a Service only inside the cluster — the right default for service-to-service traffic.

NodePort opens a high port (30000-32767) on every node and forwards it to the Service, useful for quick external access or behind your own load balancer.

LoadBalancer asks the cloud provider for an external load balancer with a public IP, the usual choice for production internet-facing services.

ClusterIP: internal-only, the default.

NodePort: a high port on every node's IP.

LoadBalancer: a cloud-provisioned external IP.

apiVersion: v1
kind: Service
metadata:
  name: web
spec:
  selector:
    app: web
  type: NodePort
  ports:
    - port: 80
      targetPort: 8080
      nodePort: 30080

Read the implementation

Connect each part of the code to the concept before you type.

1. Service type

NodePort opens a port on every node that forwards into the Service.

type: NodePort

2. Service port

port is the in-cluster Service port, same as ClusterIP.

port: 80

3. Container port

targetPort is the pod port that receives the forwarded traffic.

targetPort: 8080

4. Node port

nodePort is the external port (30000-32767) reachable on every node's IP.

nodePort: 30080
