Learn Modules

State & Modules

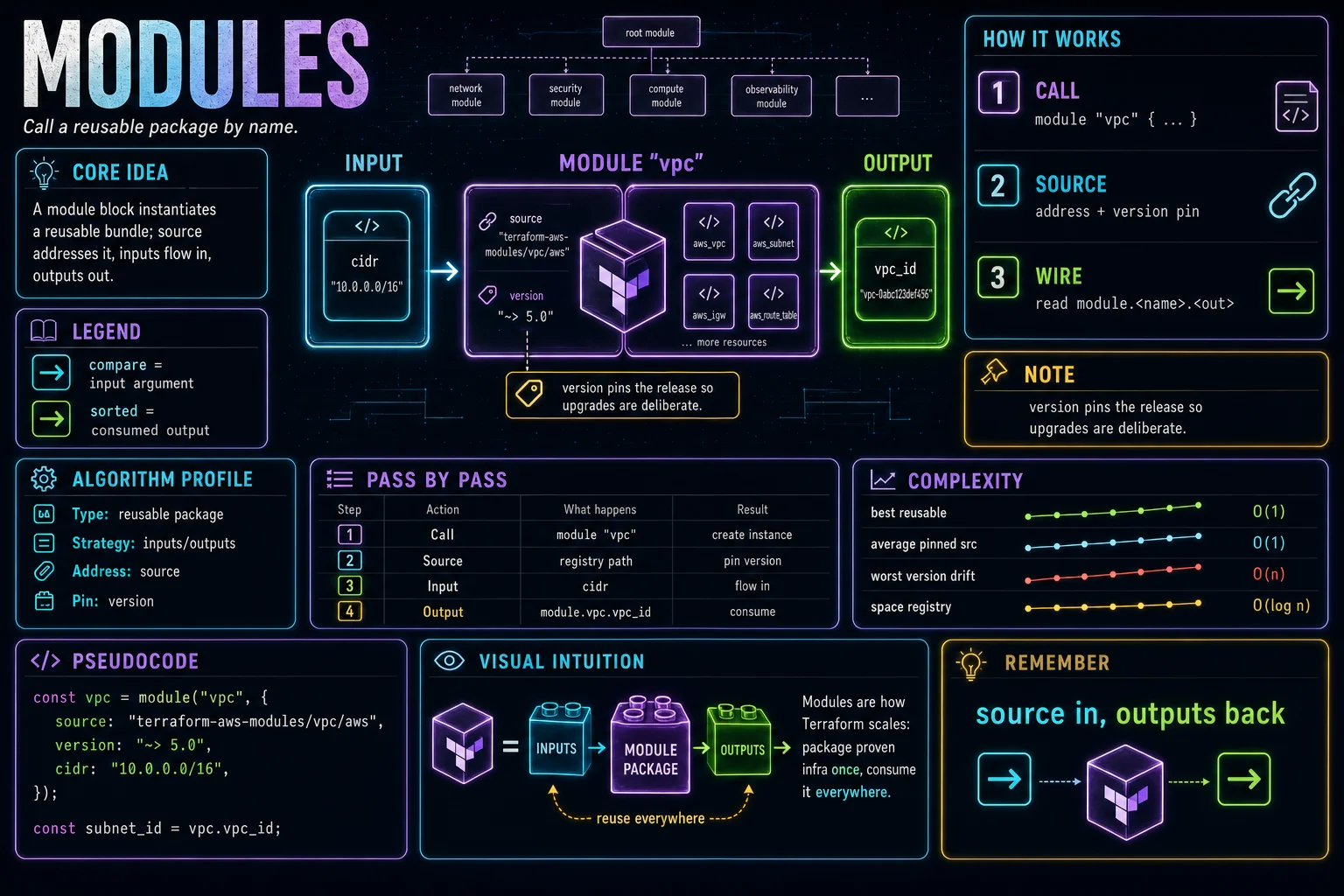

A module block instantiates a reusable bundle of resources: source addresses where it lives, inputs like cidr are passed in, and outputs are read back as module.vpc.vpc_id.

A module is a reusable package of resources you call by name. The module block here creates a VPC stack under the local label "vpc".

source tells Terraform where to fetch the module — a registry path like terraform-aws-modules/vpc/aws, a git URL, or a local path — and version pins a registry release.

Inputs (cidr) flow in like function arguments, and outputs flow back out: anywhere else in the config you read them as module.vpc.vpc_id, here wiring the VPC's id into an instance's subnet.

module "name" { ... } instantiates a reusable package.

source addresses the module; version pins a registry release.

Read outputs as module.<name>.<output>.

module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"
  version = "5.0.0"
  cidr    = "10.0.0.0/16"
}

resource "aws_instance" "web" {
  subnet_id = module.vpc.vpc_id
}

Read the implementation

Connect each part of the code to the concept before you type.

1. Module call

A module block instantiates a reusable package of resources under the local name "vpc".

module "vpc" {

2. Source address

source addresses where the module comes from — here a Terraform Registry path namespace/name/provider.

source  = "terraform-aws-modules/vpc/aws"

3. Pinned version

version pins the module release so upgrades are deliberate, not accidental.

version = "5.0.0"

4. Module input

cidr is an input variable the module exposes; you pass values in just like function arguments.

cidr    = "10.0.0.0/16"

5. Consuming an output

module.<name>.<output> reads a value the module exports — here the created VPC's id.

module.vpc.vpc_id
